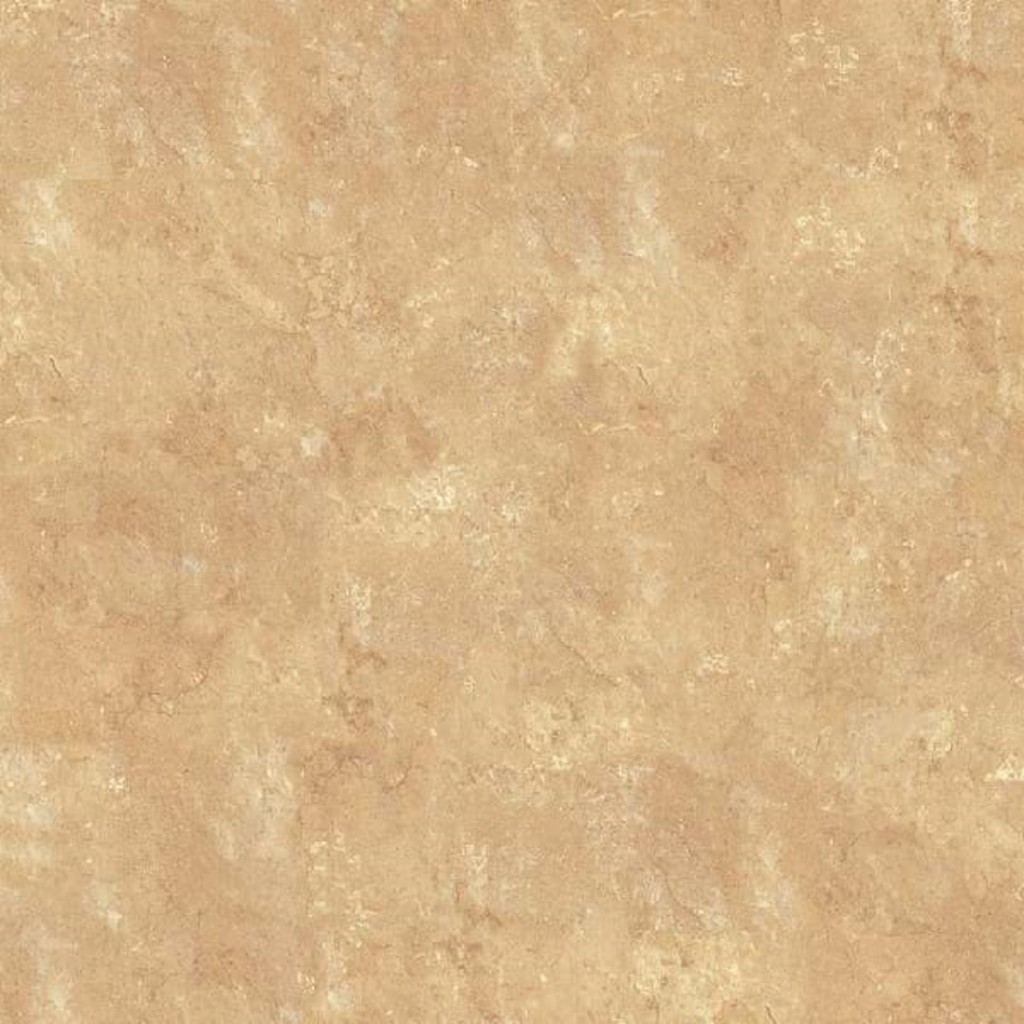

Multipanel Classic Travertine Wall Panel MP2104

Hydrolock

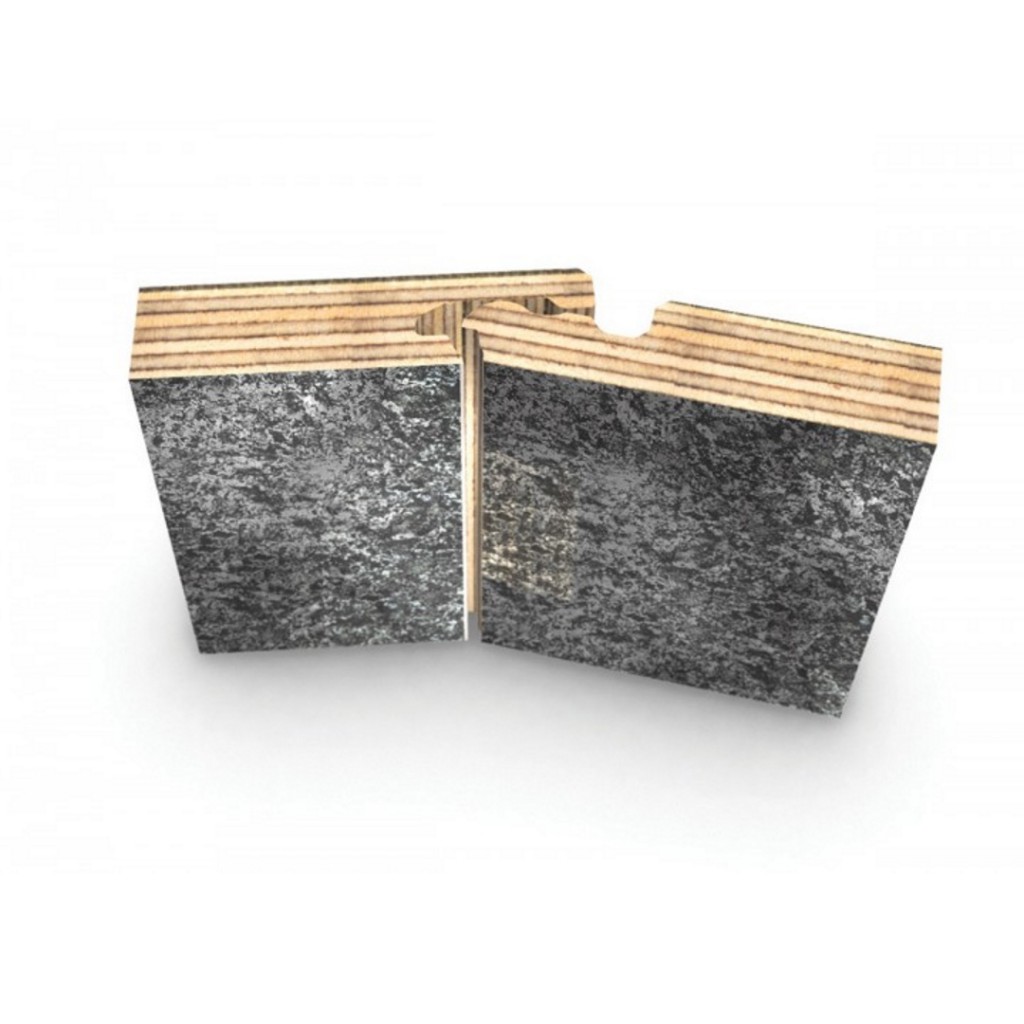

- To join two panels together without a Type D mid-joint, manufactured with Multipanels precisely engineered Hydrolock edge detail to create an extremely tight, almost invisible joint.

Technical Information

- When manufacturing Hydrolock joints, 20mm is lost from the original panel width

e.g. 598 x 2400mm = 578 x 2400mm finished face size

- Hydrolock panels are supplied as standard with a tongued edge and a grooved edge

- Hydrolock panels should be conditioned at normal room temperature for 48-72 hours prior to installation, particularly during cold spells

- Panels should be fitted grooved edge first, and the tongued edge of the next panel angled in and pushed back until it snaps into place

- A narrow bead of silicone sealant must be applied to the shoulder of the tongue

- Accuracy of pattern alignment between panels may vary depending on the scale of the pattern

- Hydrolock panels are not available off the shelf; slightly longer lead times than standard panels apply

- Full fitting instructions should be read prior to installation
